DT LED Frame 2

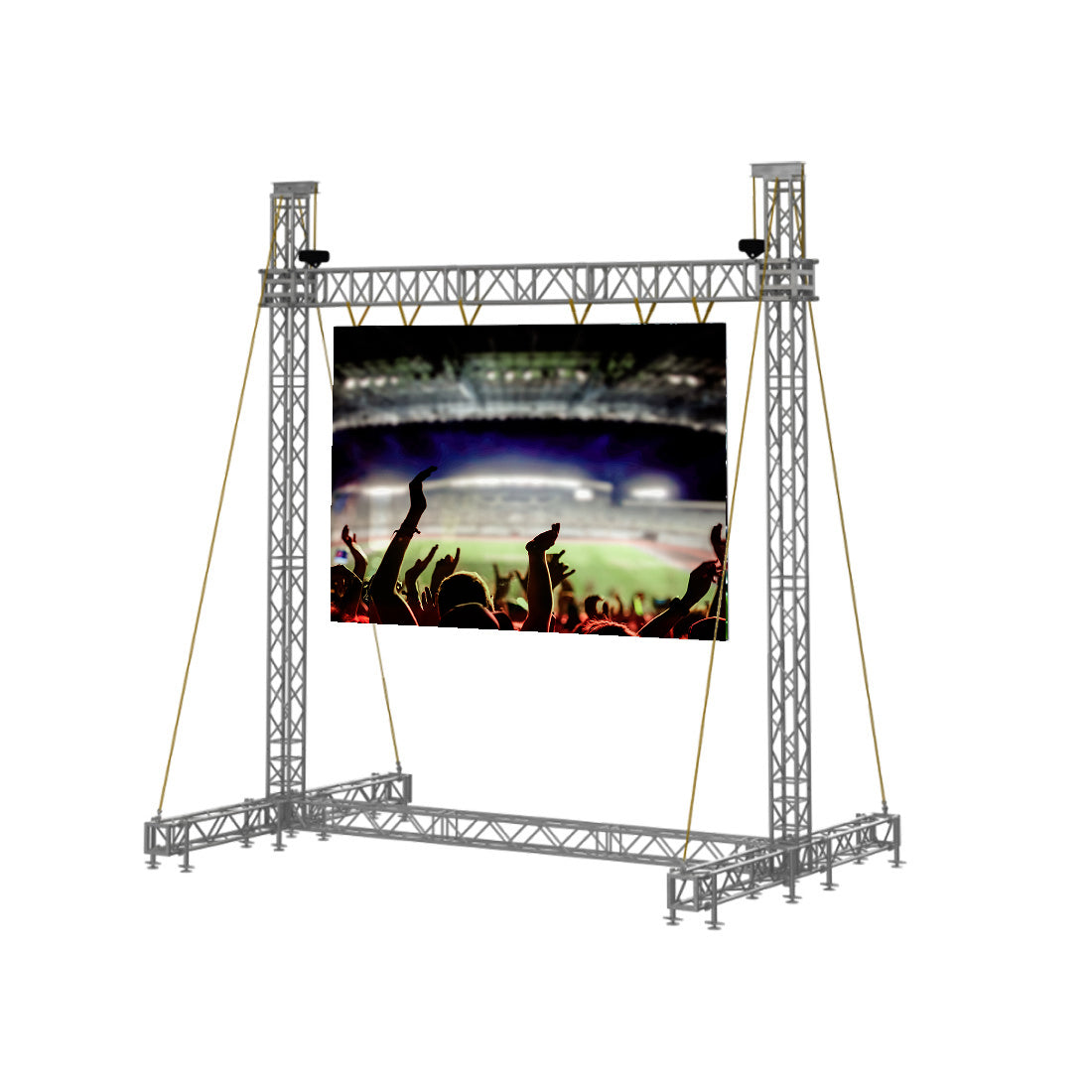

DT LED Frame 2 for LED screen 6x4m

The DuraTruss LED Frame 2 is an easy and fast assembly system that can equip a LED Screen of 6x4m with a max weight of 2000 kg. The system is build up from 3 different trussing segments.

2x 1733000067 DT 44-Sleeve Block Tower 2 - DT54/74
2x 1733000016 DT 44-Top T2
8x 1749000009 DT Hinge Section
2x 1720000001 DT 44/4-070
6x 1724200079 DT 44/4-250
2x 1733000069 DT Safety Hook 2
2x 1733000082 DT 44/2-T42 Special LED 2
2x 1724100024 DT44/2-200
5x 1724100025 DT44/2-250
1x 1795400004 DT54-200
2x 1795400005 DT54-250
16x 1733000027 DT Screw Jack
16x 1733000026 DT 34-Screw Jack Attachment
4x 1733000089 DT 44-LED Frame 2 + Eye bolts
1x 1733000083 DT LED Frame 2 Safety Set

Not included are the chain hoists, cables and electric hoists' controller. Please ask our sales team for further informations about Stagemaker hoists.
