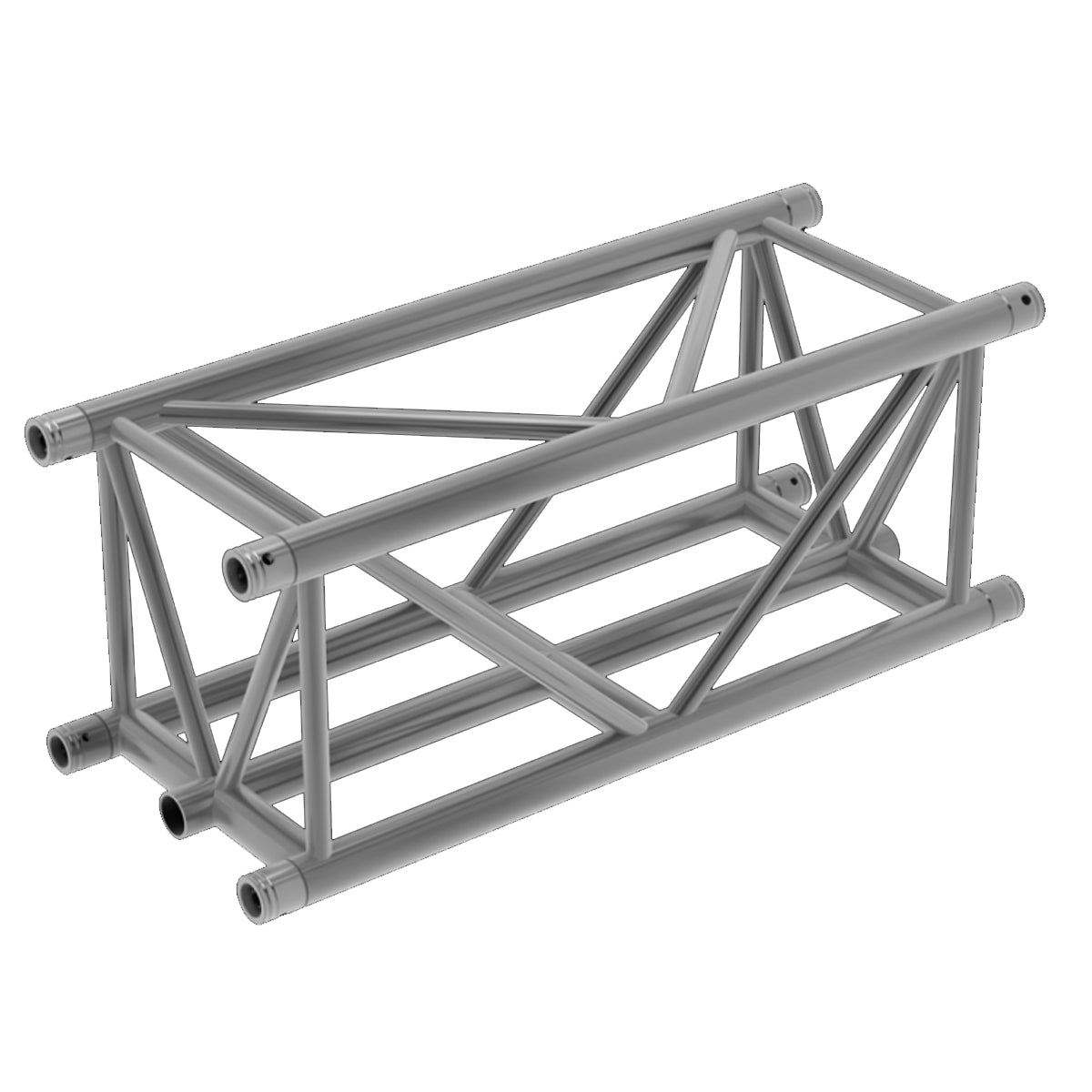

DT 45/4-300

The design of DuraTruss DT45 originated from the standard 400x400mm (16x16 inch) square truss series. DT45 contains 5 main tubes instead of 4 in the standard model. The extra bottom chord represents an added value by keeping clamped accessories in a balanced position. LED screens or any hanging applications are much easier to be connected to the truss system thanks to the centre chord .

The quick connector system closes force-lockingly with the belt tube and allows rapid construction during frequent assembly and dismantling. The main tubes are made of 50mm aluminum tube with a wall thickness of 4mm and give this system an outstanding strength-to-weight ratio. The struts have a diameter of 25 mm with a wall thickness of 3mm. Each truss piece includes all necessary conical connectors, steel pins and safety clips.



The system is from European production which is compatible to the most common systems in the market and is TÜV approved.



• High quality aluminum tubes with 50mm diameter

• Easy installation

• Low weight

• Space-saving transport

• For exhibition booth construction and event technology
