Akro ATL328 Top

Akro ATL328 Top

Dhs. 7,999.00
Dhs. 7,999.00
Sale Sold out

The Avante Tour series ATL328 is a professional 3-way active small-format line array engineered for medium to large events and pairs nicely with the Avante ATS218 subwoofer.

• Speaker Type: 3-Way Active, 2x8" Line Array Module, Milan certified

• Frequency Response: 70 - 20,000 Hz

• Max SPL: One Unit 127 dB

• MF/HF: Coaxial 4" (MF) + 2.55" (HF) - Neodymium on custom waveguide

• LF: 2 x 8" (2.5" voicecoil) - Neodymium

• Crossover Frequencies: 600 Hz / 3.5 kHz

• Horizontal Directivity: 110°

• Vertical Directivity: Depends on array size and configuration

• Channels: 3 Channels, 1 LF, 1 MF, 1 HF

• Power: 600 W RMS, 1200 W Program, 1800 W Peak

• Cooling: Convection, Internal Fan

• Power Supply: Auto switching 100V~ - 240V~, 50-60Hz

• Protection: Thermal, DC Offset, Output Short

• DSP: 64-bit Multimode with Milan

• Sample Rate: 96 kHz

• Limiter: Multiband compressor, Peak Limiter

• Processing (filters): FIR Linear Phase & 10-band IIR

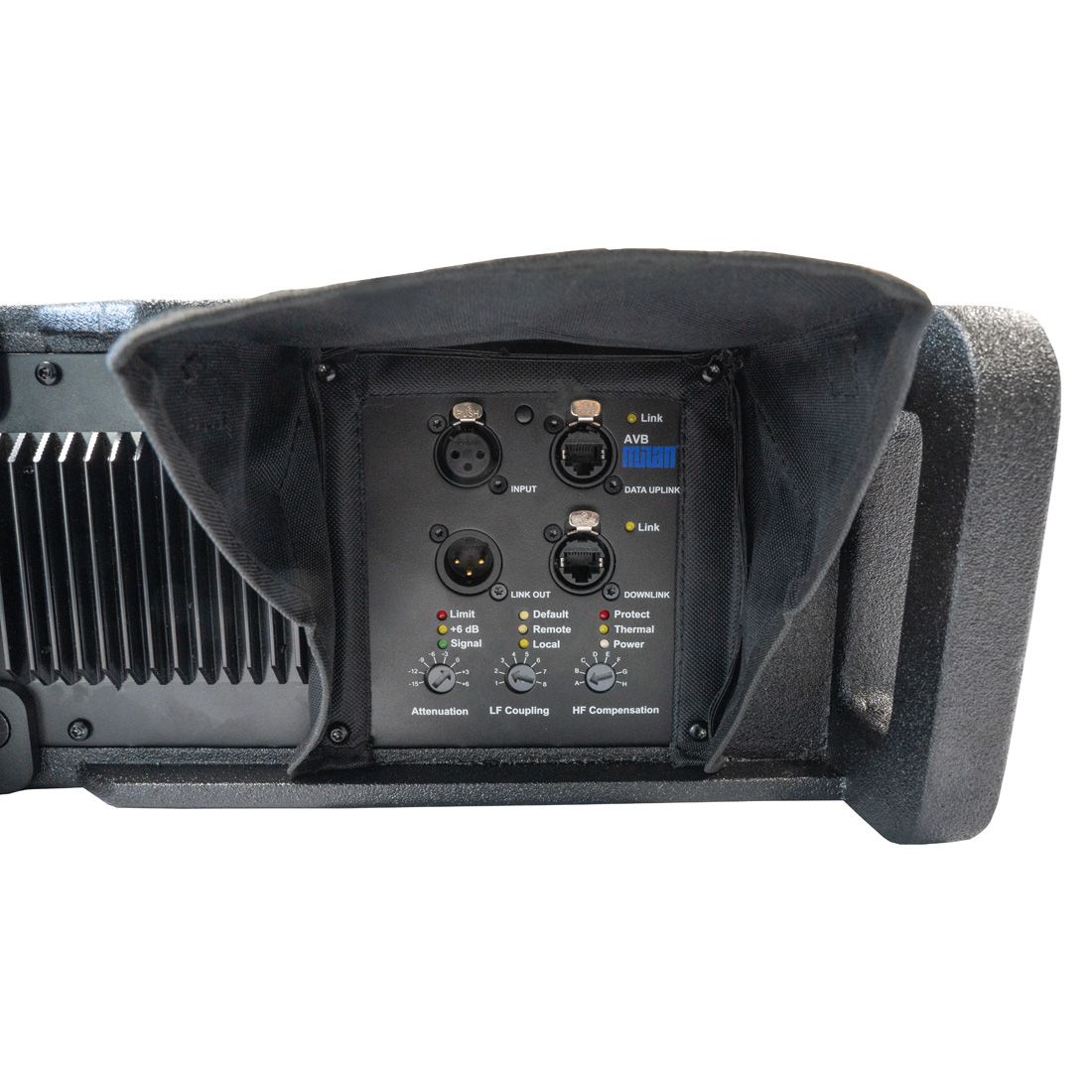

• Signal In/Out (analogue): 3-pin XLR

• Power Socket: IP65 Locking Power In/Out

• Network: Locking RJ45 In/Out for control and Milan

• Controls: 1 x Input Attenuation (-15dB - +6dB), 1 x LF Coupling (8 Presets), 1 x HF Compensation (8 Presets), 1 x System Test and Reset Button

• Special Features: Frontal LED Identification System, Inclinometer

• Housing: Multiplex Plywood - Polyurea painting

• Housing Design: Trapezoidal

• Handles: 4 x Handles (1 on each side, 2 on back)

• Rain Cover: Included, fixed

• Rigging Points: 3 points rigging hardware

• Dimensions (WxHxD): 760 x 230 x 465 mm

• Weight: 28.6 kg

• ATC328 - Transport Cart for up to 5 x ATL328

• CVR328 - Protective cover for 4 x ATL328

• AFB328 - Array Flybar/Ground Stack base

• ASB328 - Stabilizer Bars for ATC328 (2-piece set)
